CV™ SERIES
EXCEPTIONALLY CAPABLE.ABOVE ITS WEIGHT.
With up to 350 hp and 750 lb-ft of torque, the International® CV™ Series is among the most capable, lightweight trucks available. In fact, it’s the only class 5/6 truck designed, distributed and supported by a manufacturer that specializes in diesel commercial trucks. A high-strength frame rail, commercial-grade transmission and braking system, and optional air suspension equips the CV Series with the versatility and endurance for the job today and for whatever’s ahead.
THE CABS
INTERNATIONAL® 6.6
UP TO 350 HP AND 750 LB-FT TORQUE
UPFIT FOR ANYTHING

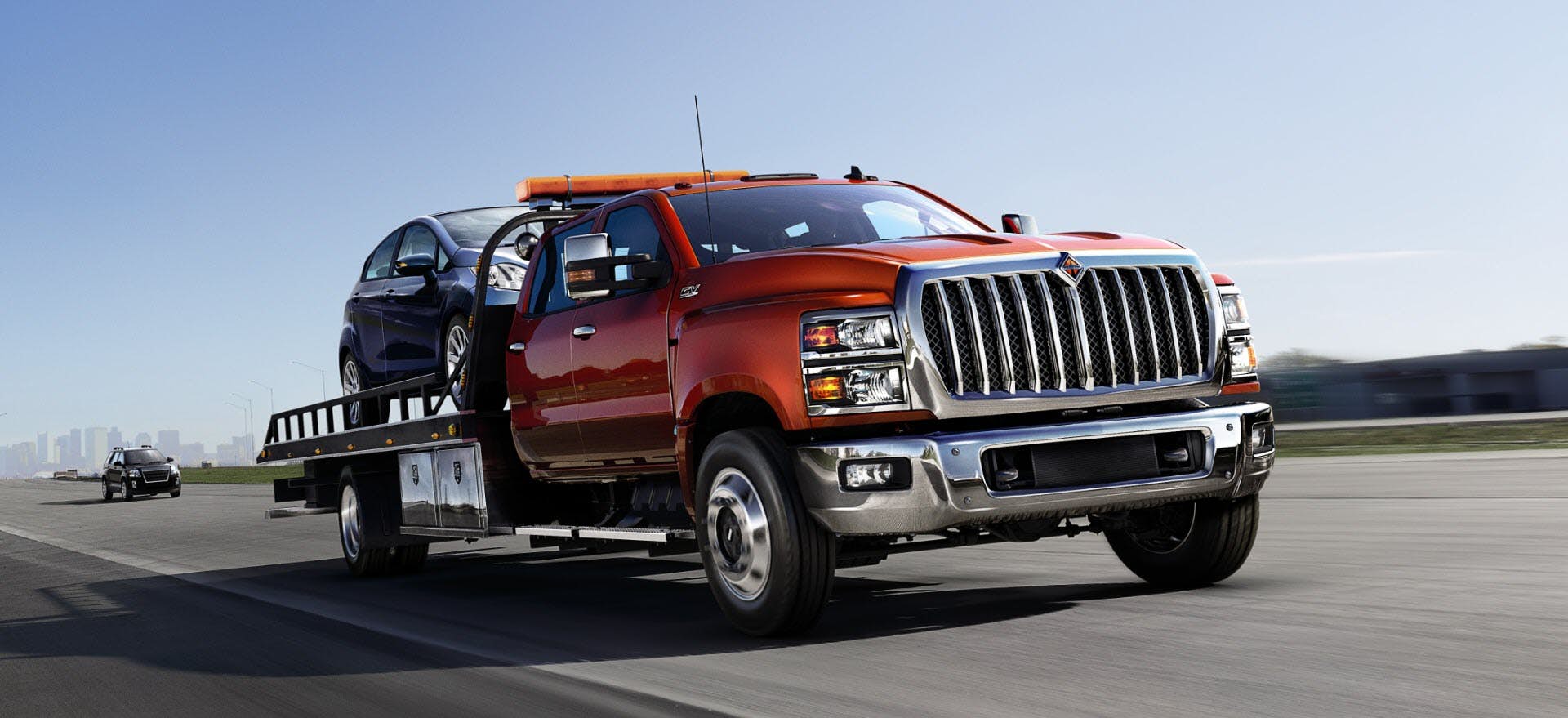

EXTERIOR
-
+
-
+
-
+
-
+
-
+
-
+
-
+
DRIVERFIRST™ IN EVERY DETAIL
-
+
-
+
-
+
-
+
-
+
BUILD YOUR OWN CV SERIES
SPECIFICATIONS
Strength
-
GVWR
4x2: 16,2,500 - 23,500 lb.
4x4: 17,500 - 23,500 lb.
Configurations
-
Axle Configurations
4x2
4x4
-
Cab Configurations
Day Cab
Crew Cab
-
Models/BBC/BA
CV515: 115” BBC, 34” BA
-
Wheelbase Options
Day Cab: 165” - 243"
Crew Cab: 175” - 235"
-
Chassis ConfigurationsFront Axles
Dana Spicer – Non-Driving: 6,250 - 8,000 lb.
Dana Spicer – Driving: 7,500 lb.
Rear AxlesDana Spicer - Single Reduction: 10,000 - 15,500 lb.
Drivetrain
-
EngineInternational 6.6L
350 hp @ 2,500 rpm
700 lb-ft of peak torque @ 1,400 rpm
-
Exhaust SystemHorizontal, Frame Mounted, Right Side Under CabTailpipe
For 165” and 175” wheel base, the tailpipe routes over rear axle and exits behind the rear wheel
For 189” or greater wheelbase, standard is a straight, horizontal tailpipe with an option to exit ahead of the rear wheel
-
Frame
High Strength, Low Alloy Steel 50,000 PSI
-
Front Axle/Suspensions
4x2: (Dana Spicer - non-driving) 6,250 - 8,000 lb.
4x4: (Dana Spicer - driving) 7,500 lb.
-
Rear Axle
Single Rear Axle
Dana Spicer: 10,000 - 15,500 lb.
-
Rear Suspensions
Spring, Vari-Rate: 11,000 - 15,500 lb.
Optional air, International Ride Optimized Suspension (IROS): 12,000 - 15,500 lb. (4x2 only).
Liquidspring - 13,500 lb. or 15,500 lb.
-
TransmissionAllison 6-speed: 1700, 1750, 2700, 2750 Series
Available Vocational Codes: HS, RDS, EVS, MH
Other Components
-
Brakes
Hydromax with 4-channel ABS, traction control, electronic stability control and a Hydromax booster for trailer sway control
-
Electrical SystemBatteries
(2) Batteries: 1,100 – 1,300 CCA
(3) Batteries: 2,250 CCA
AlternatorDenso: 150 – 220 amps
-
Fuel Tank
Single, Rectangular 25-gallon, Mounted Between Rails Forward of Rear Axle
Standard 40-gallon, Mounted between Rails Behind Rear Axle
Dual, Rectangular 25-gallon and 40-gallon
-
PTO
Available Transmission-mounted, Right Side (requires PTO-equipped transmission)
-
Steering
Bosch: S2 8014 Plus
-
Tires
Goodyear, Continental
-
Transfer case (4x4)
Meritor: 3203, 2-speed, Gear Drive, 3,000 lb-ft Capacity with Electric Shifting Controls, with optional skid plate
Available Warranties
-
Standard Warranty
Base Vehicle Warranty: 36 months or 36,000 miles (60,000 km)*
Base Engine Warranty: 60 months or 100,00 miles (160,000 km)*
Axle Coverage: 36 months or 36,000 miles (60,000 km)*
Cab structure/cab corrosion: 60 months, unlimited miles, unlimited hours
*Whichever comes first
-
Extended Warranty Options:
A variety of extended service contracts are available in addition to the base warranty, which includes: engine components, full chassis, chassis components (HVAC, electrical, starter/alternator).
Supplier extended service contracts are also available: Cummins® engine components, Eaton® transmissions and Hendrickson suspensions.
