RH™ SErIES
AgIlE. EffIcIEnt.A born local and regional hauler, the International® RH™ Series was designed to expertly navigate tight corners and city streets, with an inside wheel cut of 50 degrees and a turning radius of 27 feet, 10 inches. Best-in-class forward visibility reduces accidents and keeps you on the move. Under the hood, the RH Series levels up operating economy and performance with the International® S13 Integrated Powertrain.

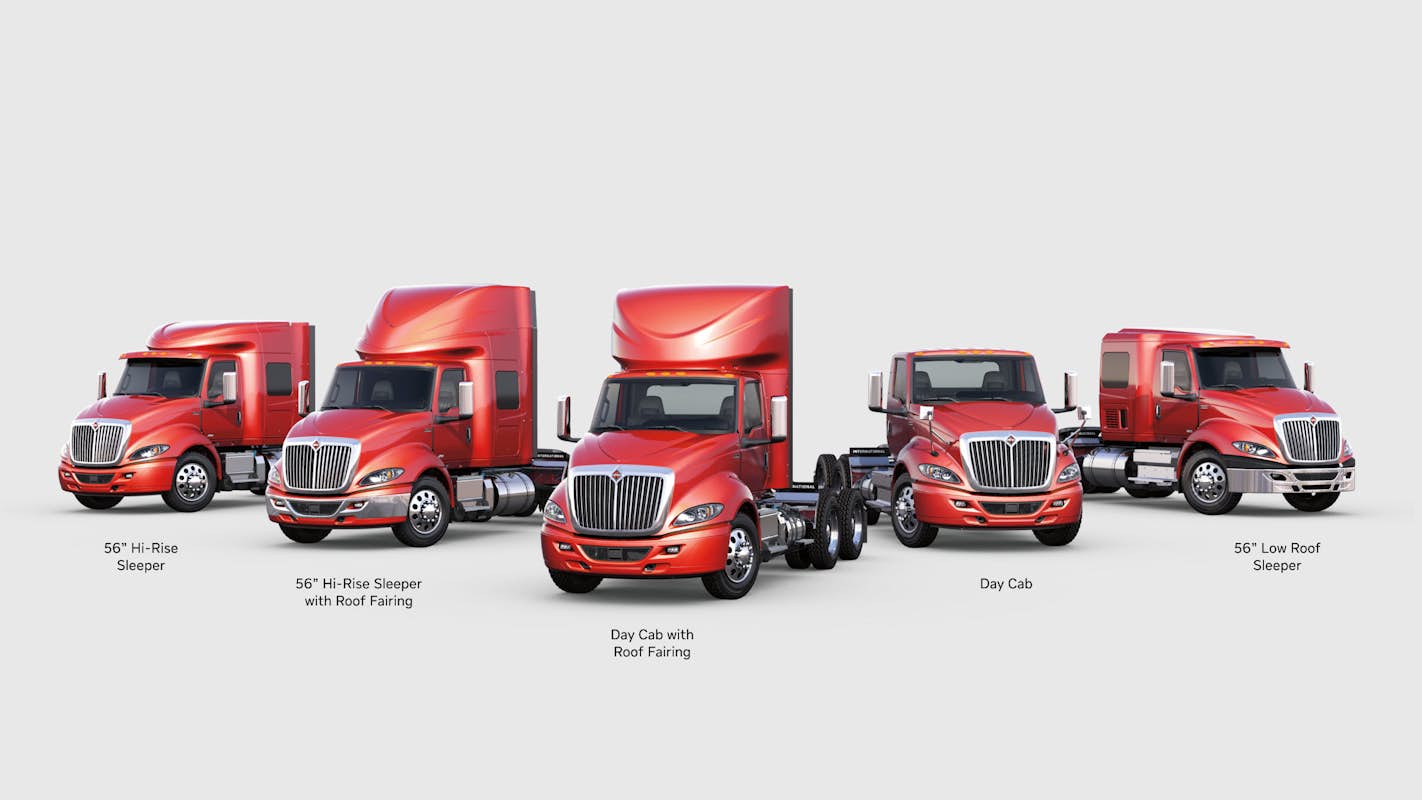

THE CABS
IntErnatIonal® S13®
IntEgratEd PowErtraIn
ShIft what’S poSSIblE
ThE trIm
FIELD OF VIEW
The RH Series was designed with safety and visibility in mind. By reshaping our doors and repositioning our cab mirrors, we've improved the driver's field of view to help mitigate vision-related accidents.
FORWARD VISIBILITY
Forward visibility is among one of the industry's best at as little as 21 feet.
TURNING RADIUS
With a wheel cut of 50 degrees and a curb turning radius of 27 feet, 10 inches, the RH is made to provide optimal maneuverability.

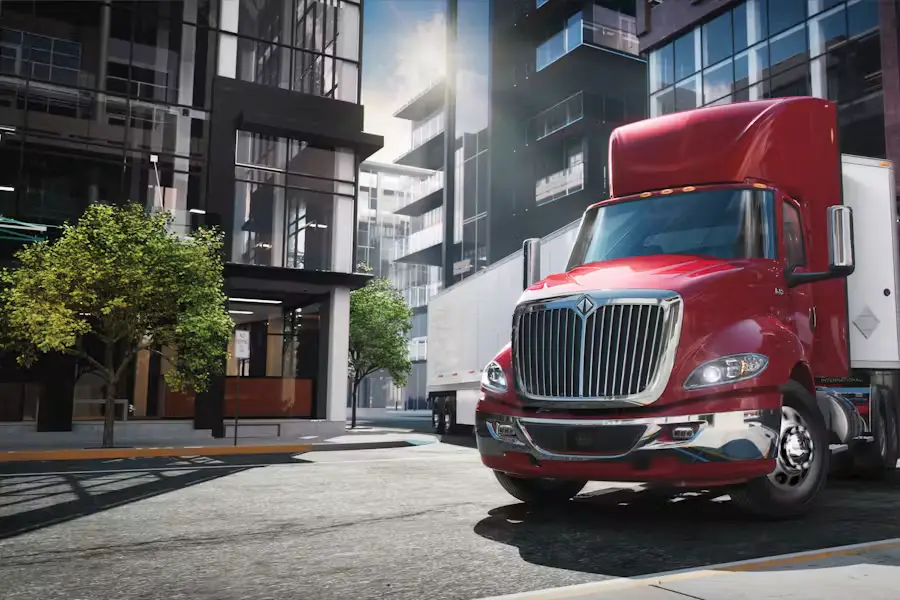

NAVIGATE THE CITY
AND YOUR BUSINESS WITH EASE.
INCREASED UPTIME
EXCEPTIONAL MANEUVERABILITY
DRIVERFIRST™
MAKE THE MOST OF A SHORT TRIP.
RH EXTERIOR
-
+
-
+
-
+
-
+
DRIVERFIRST™ IN EVERY DETAIL
-
+
-
+
-
+
-
+
PREMIUM GAUGE CLUSTER
The RH Series' Premium Gauge Cluster positions gauges and key alerts where drivers can easily view them without distraction, providing optimal viewing in varying light conditions to maximize alertness and minimize eye fatigue.
BUILD YOUR OWN RH SERIES
SpEcIfIcatIonS
Strength
-
GVW32,000 - 60,000 lb
Configurations
-
Axle Configurations
4x2
6x2
6x4
-
Cab/Sleeper Configurations
Day Cab
56" Hi-Rise Sleeper
56" Low Roof Sleeper
-
Cab Interior Trim Levels
Classic Trim
Diamond Trim
Diamond Elite Trim
-
Models/BBC/BA113" BBC/ 50" BA
-
Wheelbase optionsSleeper Cab
140 - 226" 4x2
152 - 270" 6x2, 6x4
Day Cab146-226" 4x2
152-240" 6x4
-
Chassis Configurations113" BBC 6x2
GVW: 32,000 - 60,000 lb.
Wheelbase: 152 - 270"
113" BBC 6x4GVW: 32,000 - 60,000 lb.
Wheelbase: 152 - 270"
113" BBC 4x2GVW: 32,000 - 37,000 lb.
Wheelbase: 146 - 226"
Drivetrain
-
EngineInternational S13 12.74L
400 - 515 hp and 1,450 - 1,850 lb-ft torque
-
FrameHeat Treated Alloy Steel 120,000 PSI
-
Front Axle
Hendrickson: 12,350 - 14,000 lb.
Dana Spicer: 12,350 - 14,000 lb.
Meritor: 12,350 - 14,000 lb.
-
Front Suspensions
Spring Monoleaf: 12,350 - 13,200 lb.
Parabolic Taperleaf: 12,350 - 14,000 lb.
-
Integrated PowertrainInternational S13 12.74L
400 - 515 hp and 1,450 - 1,850 lb-ft torque
International T1414-speed automated manual transmission with 2 crawler gears
Dual Stage Aftertreatment
Two DEF injectors, dual stage catalysts with upstream and midstream DEF dosing
-
Rear AxleSingle Rear Axle (4x2)
Meritor: 23,000 lb.
Dana Spicer: 23,000 lb.
Tandem Rear Axle (6x4)Meritor: 40,000 - 46,000 lb.
Dana Spicer: 40,000 - 46,000 lb.
-
Rear SuspensionsAir Single
International: 20,000 lb.
Air TandemInternational: 40,000 lb.
Hendrickson: HAS 40,000 - 46,000 lb. -
TransmissionsInternational T14
14-speed automated manual transmission
Other Components
-
Brakes
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
Air Disc Brakes with Automatic Traction Control, and Electronic Stability Control
-
Fuel TankDay Cab
70 - 120 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of the Cab or Under Cab
70 – 120 Gallon, Single, Non-Polished or Polished Aluminum, Mounted Back of the Cab or Under Cab
Sleeper Cab70 - 120 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of the Cab or Under Sleeper
70 – 120 Gallon, Single, Non-Polished or Polished Aluminum, Mounted Back of the Cab or Under Sleeper
-
Power Steering
Sheppard
TRW
-
Tires
Continental
Michelin
Bridgestone
Goodyear
Hankook
Available Warranties
-
Standard WarrantyBase Vehicle Coverage: 12 months or 100,000 miles (160,000 km)*S13 Engine Base Warranty: 24 months, unlimited miles, unlimited hoursT14 Transmission: Base Warranty (includes towing)
Transmission: 60 months; 750,000 miles (1,200,000 km)*
Clutch: 36 months; 350,000 miles (563,000 km)*
Dual Stage Aftertreatment: 24 months, unlimited miles, unlimited hoursCummins® X15: 24 months or 250,000 miles*Front & Rear Axle. Differential and Transmission: 36 months or 300,000 miles (480,000 km)*Cab Structure / Corrosion: 60 months, unlimited miles, unlimited hours*Whichever comes first -
Extended Warranty Options
A variety of Extended Service Contracts are available in addition to the base warranty, including engine components, full chassis, chassis components (HVAC, electrical, starter/alternator).
Supplier extended service contracts are also available: Cummins® engine components, Eaton transmissions and Hendrickson suspensions.
