HX® SERIES
UNMATCHED. RELENTLESS.EVERYWHERE

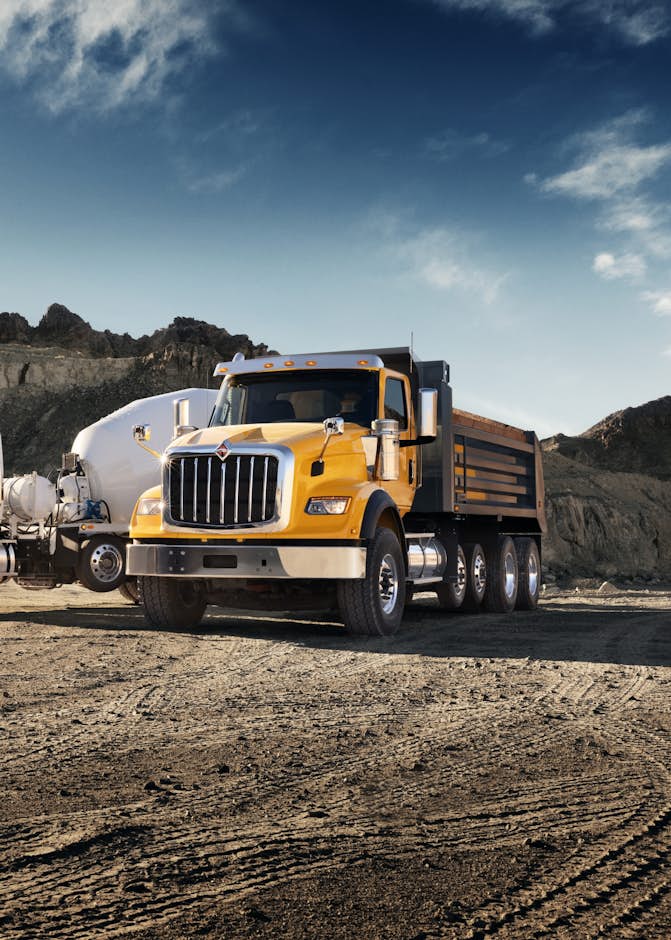

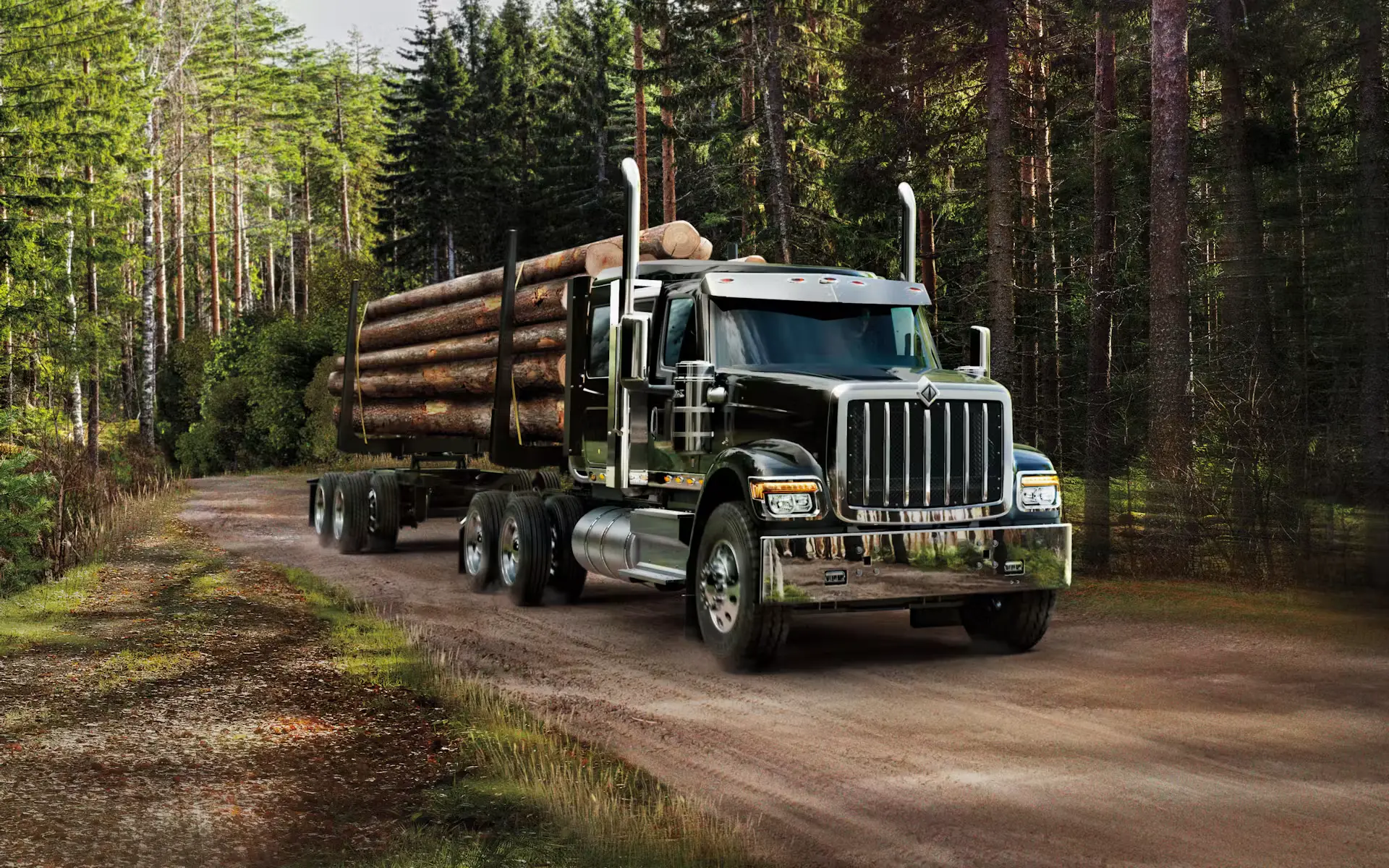

International® HX® Series trucks are built around you to be the toughest of the tough. Available with either a set forward or set back steer axle position, these trucks feature a spacious galvanized steel cab with anti-corrosion finishes like Chemguard and spray-on liner protection, to stand up against any element. Available in both day cab as well as sleeper options, the HX Series provides the power you need with either the S13 Integrated Powertrain or the Cummins® X15.
ThE cabS
THE TRIM
DIamond
DIamond ElItE
STRONG. POWERFUL. RESILIENT.
IMPROVED STRENGTH
AdvancEd IntEgratIon
INCREASED UPTIME
JUST ANOTHER DAY ON THE JOB
INTERNATIONAL DIAMOND LOGIC®
ELECTRICAL SYSTEM
EXTERIOR/MECHANICAL
-
+
-
+
-
+
-
+
-
+
INTERIOR
-
+
-
+
-
+
BUILD YOUR OWN HX SERIES
SPECIFICATIONS
Strength
-
GVW52,000 - 92,000 lb.
Configurations
-
Axle Configurations
6x4
8x6
-
Cab/Sleeper Configurations
Day Cab
56" Low and High Sleeper Cabs
73" High Sleeper Cab
-
Cab Interior Trim Levels
Diamond
Diamond Elite
-
Chassis ConfigurationsHX520
120” BBC, Set-Forward Front Axle Truck or Tractor
GVW: 52,000 - 90,000 lb.
HX620119” BBC, Set-Back Front Axle Truck or Tractor
GVW: 53,200 - 92,800 lb.
-
Models/BBC/BA
HX520 120” BBC, Set-Forward Front Axle Truck or Tractor
HX620 119” BBC, Set-Back Front Axle Truck or Tractor
Drivetrain
-
EnginesInternational S13 12.74L
HX520 / HX620: 400 - 515 hp and 1,450 - 1,850 lb-ft. torque
Cummins® X15 15LHX520 / HX620: 430-605 HP, 1650-2050 lb-ft torque
-
Rear AxlesTandem Rear Axles
Dana: 40,000 - 52,000 lb. Single and Two Speed
Meritor: 40,000 - 70,000 lb. Single and Double Reduction
Tridem Rear AxlesMeritor: 53,000 - 69,000 lb.
-
Rear SuspensionsSpring Suspensions
Chalmers: 40,000 – 52,000 lb.
Hendrickson HAULMAAX EX: 40,000 -52,000 lb.
Hendrickson R, RT: 40,000 - 80,000 lb.
Air SuspensionsHendrickson HAS: 40,000 - 46,000 lb. 55" and 60" spacing
Hendrickson PRIMAAX® EX: 46,000 - 52,000 lb. 55", 60", 72" spacing
Hendrickson PAX Tridem: 69,000 lb.
-
TransmissionsEaton Manual:
8LL (10-speed), 9LL (11-speed), 13-speed, 18-speed
Eaton Automated Manual Endurant HD:12-speed
Eaton Automated Manual Endurant XD & XD Pro:18-speed
Allison Automatic:4000, 4500 and 4700
-
Exhaust SystemSwitchback After Treatment Device:
Single or Dual Vertical Stacks
Vertical After Treatment Device:Single Vertical Stack
-
FrameHeat Treated Alloy Steel 120,000 PSISingle Rail
3/8": 10.25"x3.61"x0.375": 2,037,600 RBM
3/8": 12.25"x3.380”x0.375": 2,521,200 RBM
1/2": 12.5"x3.750"x0.5": 3,536,400 RBM
-
Double Rail
5/16"+ 5/16": 10.813"x3.893x0.625": 3,580,800 RBM
3/8"+ 5/16": 13.030"x3.687"x0.6875": 4,854,000 RBM
-
Front Axle (Wide Track)HX520
Meritor: 12,000 - 20,000 lb.
HX620Dana: 16,000 - 22,000 lb.
Meritor: 12,000 - 22,000 lb.
-
Front SuspensionsHX520
Multi-leaf: 20,000 lb.
Parabolic Taper-leaf: 12,000 - 20,000 lb.
HX620Multi-leaf: 14,000 - 23,000 lb.
Parabolic Taper-leaf: 13,200 - 22,000 lb.
Slipper- Type: 20,000 - 24,000 lb.
-
International S13 Integrated PowertrainTwo DEF injectors, dual stage catalysts with upstream and midstream DEF dosing
-
International S13 12.74L
400 - 515 hp and 1,450 - 1,850 lb-ft. torque
-
International T14
14-speed automated manual transmission with 2 crawler gears and transmission PTO
Other components
-
AlternatorsDelco Remy:
165 - 300 amp
-
Battery System
1,980 - 3,800 CCA's
-
Braking & Control Systems
Traction Control
Electronic Stability Control (ESP)
Bendix® Wingman® Advanced and Bendix® Wingman® Fusion
-
Fuel Tanks
60 - 240 Gallons, Single or Dual, Polished or Non-Polished
LH Mounted Under Cab or Dual Under Cab or Back of Cab
24" or 26" Diameter
-
Electrical Systems
International® Diamond Logic® electrical system
Standard Circuit Breakers
-
Headlights
Halogen Headlamps with LED Daytime Running Lights and Turn Signals
-
Power Take-Off
Front Engine PTO (FEPTO) HX520
Rear Engine PTO (REPTO) HX520, HX620
Available Warranties
-
Standard WarrantyBase Vehicle Coverage: 12 months, unlimited miles, unlimited hours*S13 Engine: 24 months, unlimited miles, unlimited hours*Fire & Rescue Applications: 60 months or 100,000 miles (160,000 km)*T14 Transmission: Transmission, Clutch and Transmission Mounted PTO Base Warranty (includes towing):
Less than 52K Rear Axle Rating: 36 months; unlimited miles, unlimited hours
Greater than or equal to 52K Rear Axles Rating: 24 months; unlimited miles, unlimited hours
Dual Stage Aftertreatment: 24 months, unlimited miles, unlimited hoursCab Structure/Corrosion: 120 months, unlimited miles, unlimited hours
*Whichever comes first -
Extended Warranty Options
A variety of extended service contracts are available in addition to the base warranty, including engine components, full chassis, chassis components (HVAC, electrical, starter/alternator).
Supplier extended service contracts are also available: Cummins® engine components, Eaton transmissions and Hendrickson suspensions.
